ROAMBUILT Mercedes Sprinter (2019-2025) Full Guard Front Bumper

$9,999.00

LEAD TIME 6-8 weeks.

ONLY SUITS 2024 or older vans.

2025+ vans have Sideguard Assist sensor located on the passenger-side front corner beneath the headlight, the Full Guard bumper is not compatible, and you must use the LoPro Bumper instead.

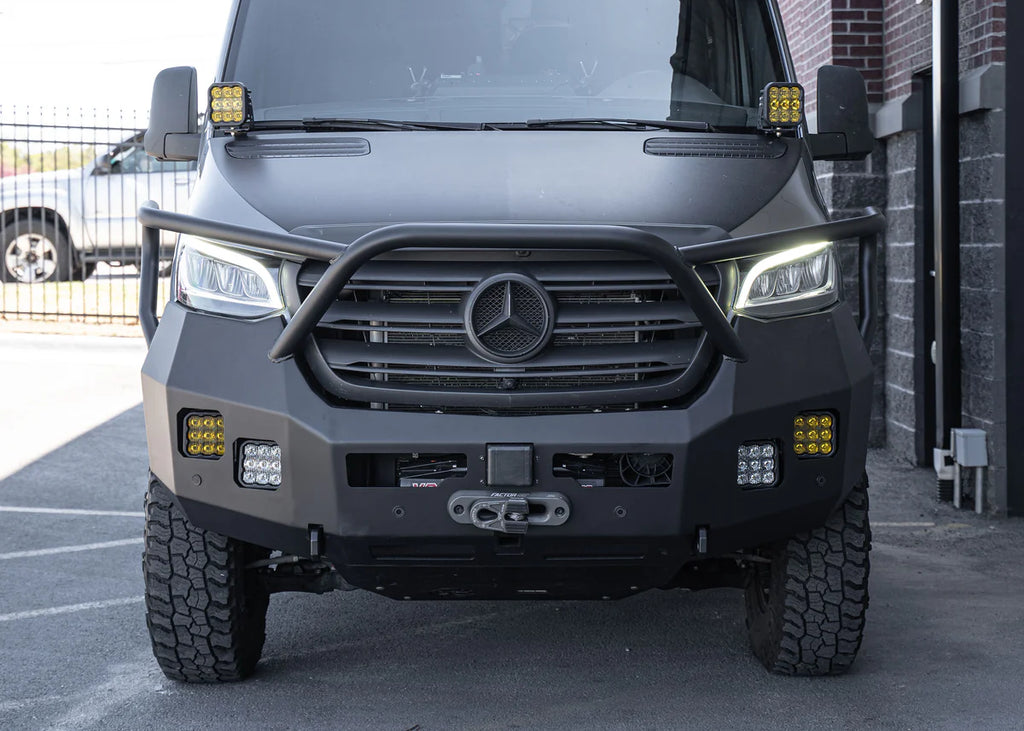

Mercedes Sprinter Full Guard Front Bumper – Hybrid Steel & Aluminium, Lightweight with Full Protection

If you’re looking to upgrade your Mercedes Sprinter van with added protection and true off-road functionality—without unnecessary weight—our Full Guard Front Bumper is the perfect solution. Built with a hybrid steel and aluminium design, it combines strength exactly where you need it most and weight savings everywhere else. The result is a highly capable, rust-proof, and durable bumper that weighs only 68kg.

The outer shell is constructed from 3/16" (4.8mm) 5052 aluminium and reinforced with an internal ribbed gusset system for rigidity. Critical mounting areas—like the winch cradle and shackle mounts—are made from 1/4-inch (6.4mm) thick steel, giving you rock-solid strength for recovery and front-end protection.

Specifically designed to complement popular van platforms like the Jayco All Terrain and Trakka Jabiru, this bumper is the ideal upgrade for serious travellers, off-road explorers, and professional fitouts seeking lightweight durability without compromise.

Key Features:

  • Lightweight hybrid bumper: steel winch cradle and shackle mounts with an all-aluminium shell

  • Compatible with Mercedes Sprinter 2500, 3500, 2WD and AWD models

  • Ideal for Jayco All Terrain & Trakka Jabiru builds

  • Accepts Warn VR-EVO & Warn 12k Zeon series winches (up to 12k)

  • 25mm thick steel shackle mounts for 19mm shackles

  • Integrated 50mm receiver hitch

  • Full guard tube design with 60mm aluminium centre tube and 50mm outer tubes

  • Four square light pockets compatible with most LED lights

  • Recommended LEDs: Diode Dynamics SS5 White Sport & SS5 Yellow Sport

  • Works with Cruise Control and Active Brake Assist

  • Full frontal DEF tank protection for on- and off-road use

  • Reinforced with vertical and horizontal gusseting for extra strength

  • Wrap-around steel frame brackets for maximum support

  • Designed to exceed Mercedes airflow requirements

  • Pre-cut sensor holes and housings / includes sensor cap deletes

  • Finished in black textured powder coat

  • Imported from Roambuilt USA – proven, high-quality gear trusted worldwide

More Details:

  • Large hand cutouts for easy winch operation and line visibility

  • Bolts directly to the frame and uses frame extensions for additional strength

  • Quick and easy installation

  • Vehicle Fitment: Mercedes Sprinter Van (2019–2024)

⚠️ Important Fitment Note: If your 2024 model has the Sideguard Assist sensor located on the passenger-side front corner beneath the headlight, the Full Guard bumper is not compatible, and you must use the LoPro Bumper instead.

(Note: For 2WD or Sprinter 3500 dually, additional frame brackets are required. The 3500 requires DEF tank removal to drill mounting holes – please contact us for details.)
